PQWT L2000 Underground Pipeline Leakage Locator

PQWT L2000 Underground Pipeline Leakage Locator

PQWT-L2000 Pipe Leak Detector, design for indoor or outdoor underground pipeline leakage detection.
Sensor: Middle Sensor
Detection Depth: 5m (195in)
Headphones: High Frequency Noise Canceling Headphones
Application: Indoor and Outdoor Underground Pipes
Working Principle: By collecting and analyzing the leak signal, pinpointing the leakage on the pressure pipelines.

Production

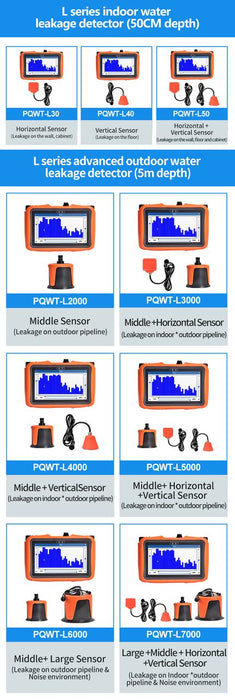

PQWT-L Multi-Sensor Water Pipeline Leak detector is the latest generation of intelligent water leak detector independently developed by Hunan Puqi Geologic Exploration Equipment Institute, This device is equipped with a triangle sensor, square sensor, medium sensor and large sensor. It is suitable for water leakage detection of outdoor water pipe, fire pipe, heating system, indoor water pipe, and underground heating floor pipe. By collecting and analyzing leakage signal, it solves the problem of pressure pipe water leak.

Working Principle

PQWT-L Multi-Sensor Water Pipeline Leak detector collects leaking sound signal through its sensor, collected signal will be processed by host machine and displayed on the host machine screen in the form of visual spectrum and signal bars. At the same time, the sound will also be output to its earphone through the host machine. Water leakage point can be found out easily through the combination of "listening to the abnormal sound" and "observing the abnormal signal bars”

Accessories included from factory:

• Protective case
• Control unit
• Headphones
• Middle Sensor
• Charger & wire
• Sound pole
• Telescopic handle
• Belt
• Steel base
